HY-D40 Mini Dumper -

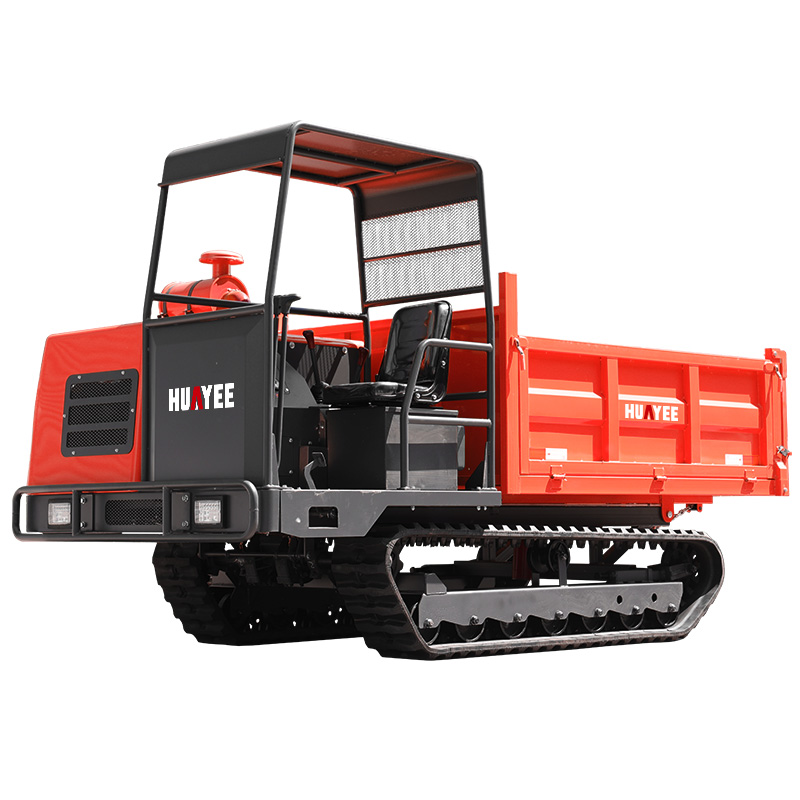

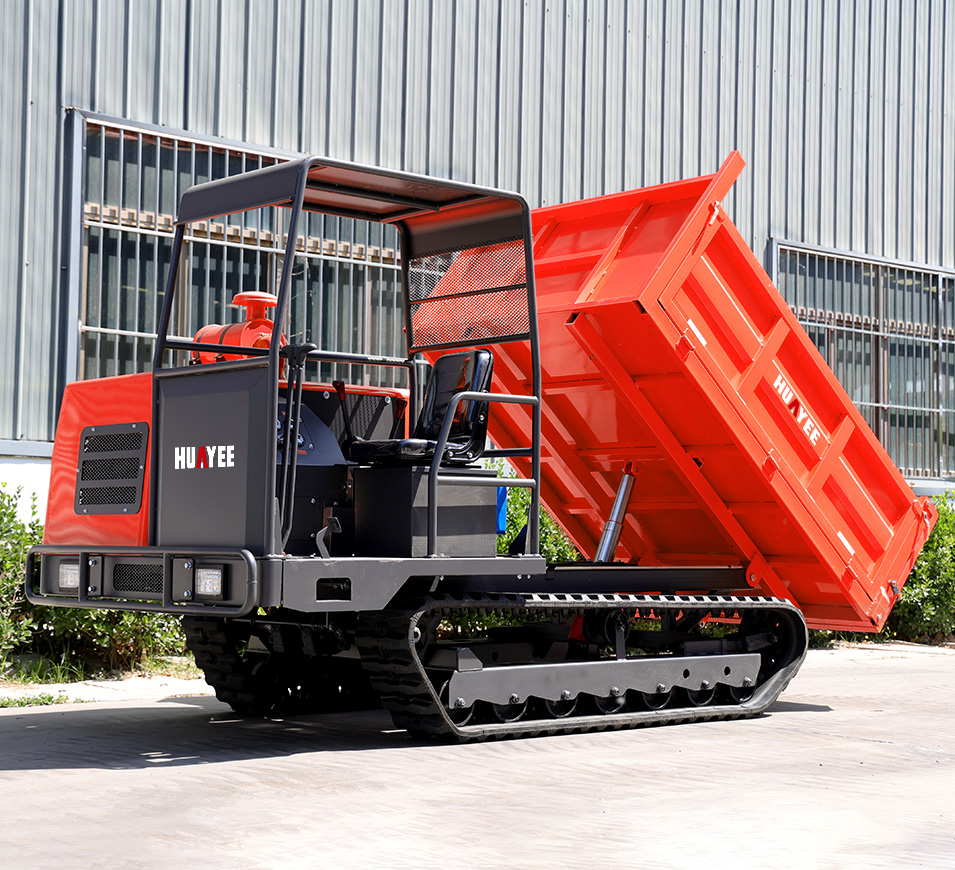

HY-D40 Mini Dumper
Mini crawler dumper truck is a dump truck made of rubber crawler chassis, suitable for short-distance transportation of complex terrain such as building material stores, farms, construction sites, etc.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

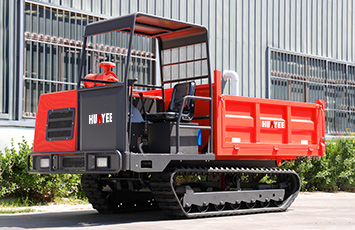

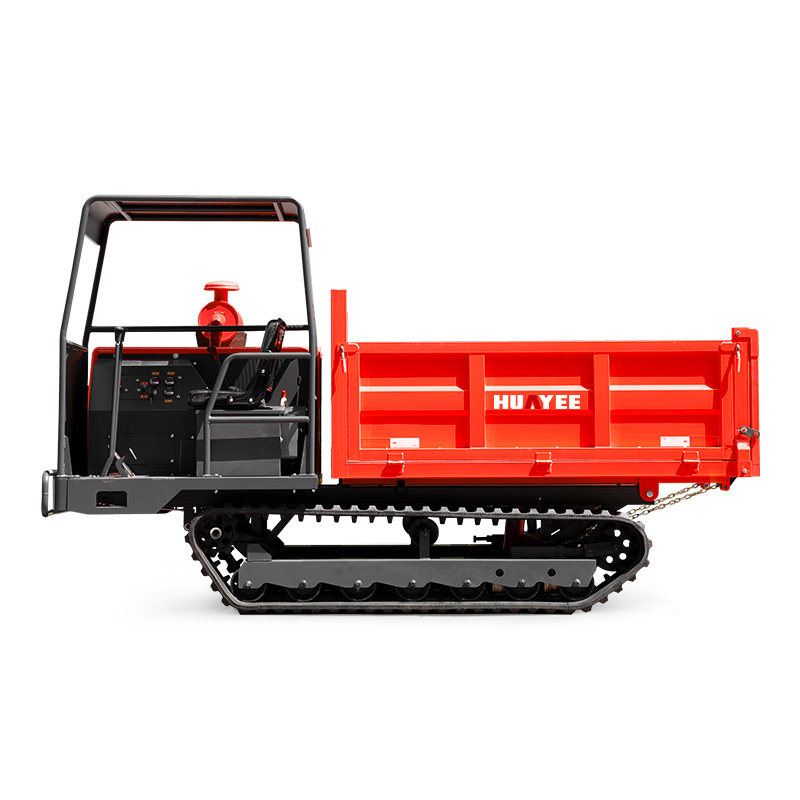

HY-D40 Mini Dumper
- Max Loading Capacity 4000KG
- Engine Power 56HP
-
-
-
Hydrostatic Drive
·Simply start and off you go: Because of the hydrostatic drive system, no frequent gear changing is needed and the operator can focus on the task.
·The hydraulic drive system and the working hydraulics can be operated independently of each other.
-
-
-

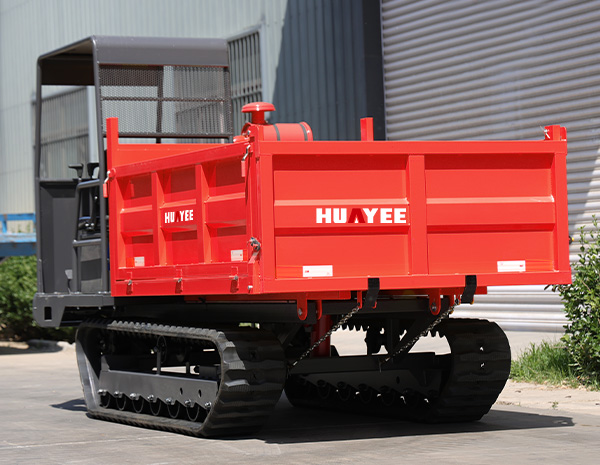

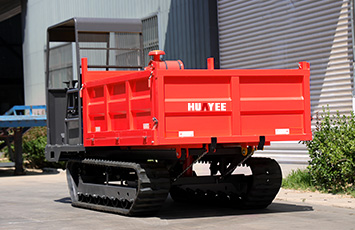

Compact and powerful
Vehicle has strong load-bearing capacity, and the carriage can be customized with various heights and widths, it can climb steep slopes of 40 degrees. The maximum load-bearing capacity of the chassis can reach 8 tons.

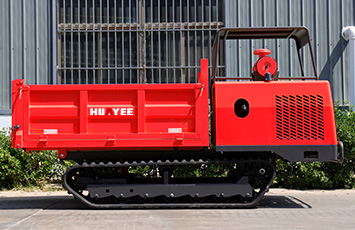

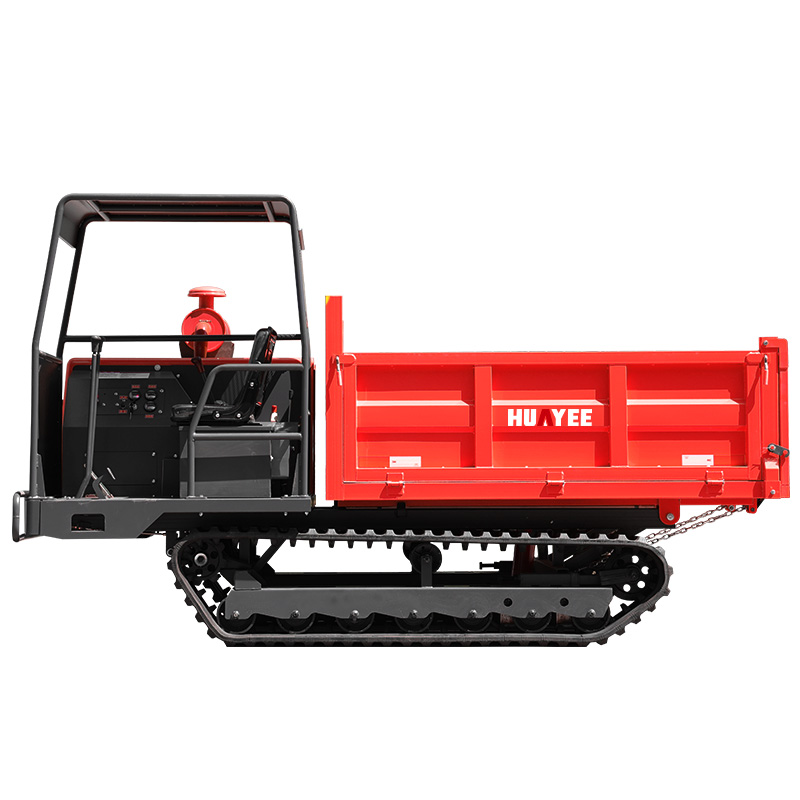

Small Dimensions
·The compact dimensions of the machine make it ideal for maneuvering and working in confined spaces.
·This gives better possibilities to maneuver the machine in narrow applications.
·The machine can be operated without restrictions even in narrow places. -
-
-
Applicable to all terrains
Wide rubber track design makes the chassis more stable when climbing slopes，and are widely used in agricultural, forestry, orchard transportation, freight yard loading, water conservancy construction, infrastructure projects, and mining sites.

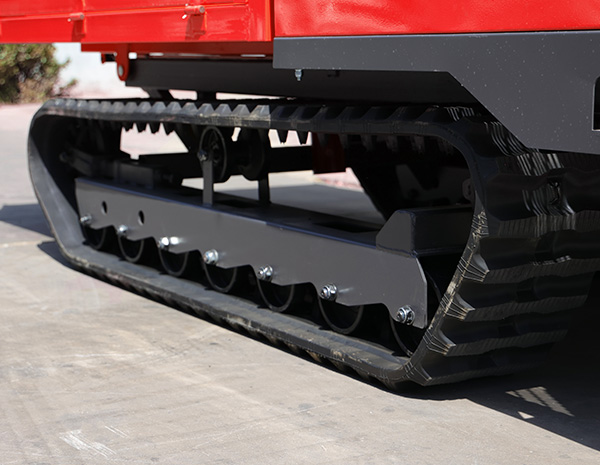

Track Width
·Due to the wide tracks, the machine produces very low ground pressure, which reduces ground disturbance during repair work.
·This also leads to a more comfortable and smoother driving experience and protects the machine and operator.
Model |
HY-D40 Mini Dumper |
Max loading capacity |
4000KG |
Weight |
1500KG |
Variable box model |
23 Positive-1200 |
Vehicle size (L*W*H) |
3600*1600*1800mm |
Cargo box (L*W*H) |
2160*1600*600mm |
Track (model) |
350*90*56/320*90*56 |
Ground contact length |
1976mm |
Minimum turning radius |
14 |
Gear position |
6 front and 2 reverse |
Maximum travel speed |
18km/h |
Minimum travel speed |
3km/h |
Chassis width |
Electric start |
Starting method |
Water cooling |
Cooling method |
40° |
Uphill angle |
Agricultural track/Engineering rubber track |
Track type |
Hydraulic single top dump bucket |

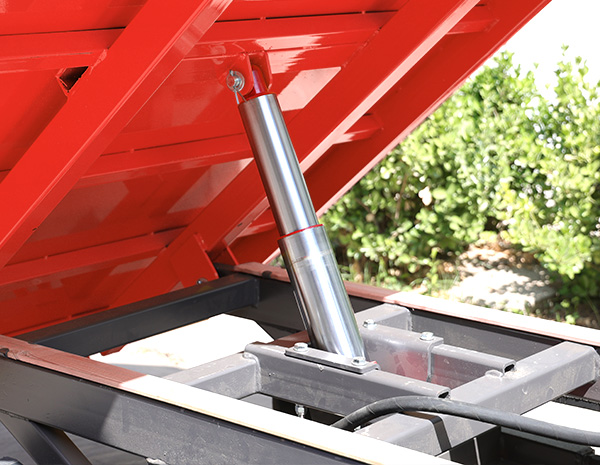

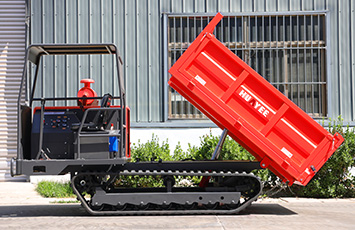

Dump function |
Huichai 490 |
Engine brand |
Four cylinders |
Engine model |
56HP |
Number of engine cylinders |
4000KG |
Engine power |
1500KG |
