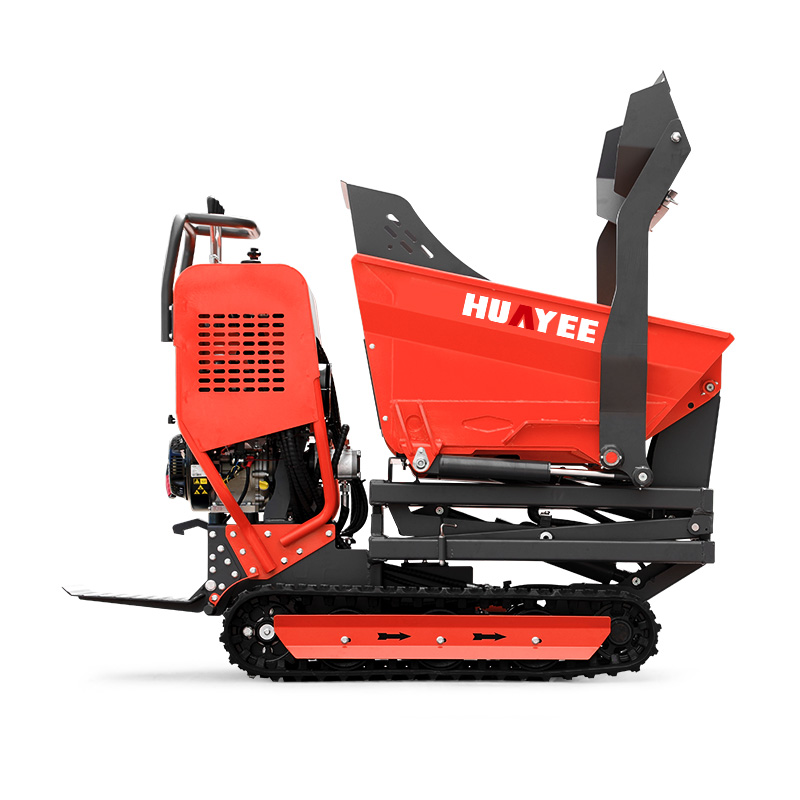

HY-A05 Mini Dumper -
HY-A05 Mini Dumper
Mini crawler dumper truck is a dump truck made of rubber crawler chassis, suitable for short-distance transportation of complex terrain such as building material stores, farms, construction sites, etc.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

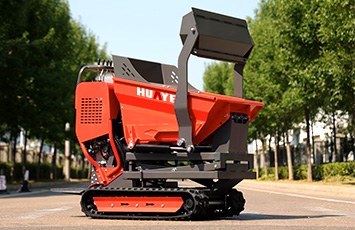

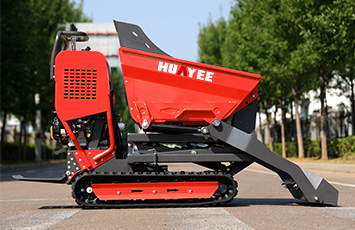

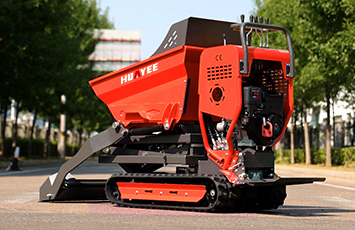

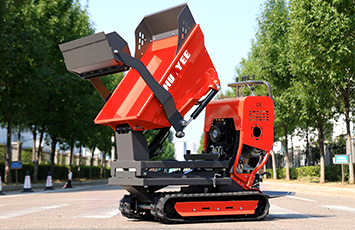

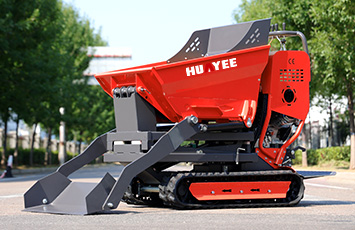

HY-A05 Mini Dumper
With its 500KG payload and only 87 cm machine width, the HY-A05 is the perfect fit for rental fleets. The low-maintenance and intuitive-to-operate hydrostatic drive system allows simple operation, even for inexperienced operators.
- Max Loading Capacity 500KG
- Dimensions 1566x870x1660mm
- Engine Power 9.8HP
-
-
-
Hydrostatic Drive
·Simply start and off you go: Because of the hydrostatic drive system, no frequent gear changing is needed and the operator can focus on the task.
·The hydraulic drive system and the working hydraulics can be operated independently of each other.
-
-
-
Small Dimensions
·The compact dimensions of the machine make it ideal for maneuvering and working in confined spaces.
·This gives better possibilities to maneuver the machine in narrow applications.
·The machine can be operated without restrictions even in narrow places. -
-
-
Track Width
·Due to the wide tracks, the machine produces very low ground pressure, which reduces ground disturbance during repair work.
·This also leads to a more comfortable and smoother driving experience and protects the machine and operator.
Model |
HY-A05 mini dumper |
Machine weight |
520KG |
Maximum load |
500KG |
Walking speed |
1.7/3.5(km/h) |
Minimum turning radius |
0.1m |
Track center distance |
520mm |
Minimum ground clearance |
85mm |
Gradeability |
20° |
Hydraulic oil tank capacity |
11L |
Hydraulic oil product number |
46# anti-wear hydraulic oil |
Container volume |
0.22(1040*730*590)m³ |
Length * width * height |
1566*870*1660(mm) |
Engine |
|
Brand |
Briggs & Stratton/RATO |
Displacement |
306cc/301cc |
Total power (HP)*@3600rpm |
10(7.4KW/3600) |
Fuel capacity |
5.3L/6.5L |
Oil capacity |
25kg/26kg |
Net weight |
25kg |
Travel motor |
|
Brand |
LeCroy Hydraulics |
Displacement |
200cc |
Maximum working pressure |
20MPa |
Maximum torque |
805Nm |
