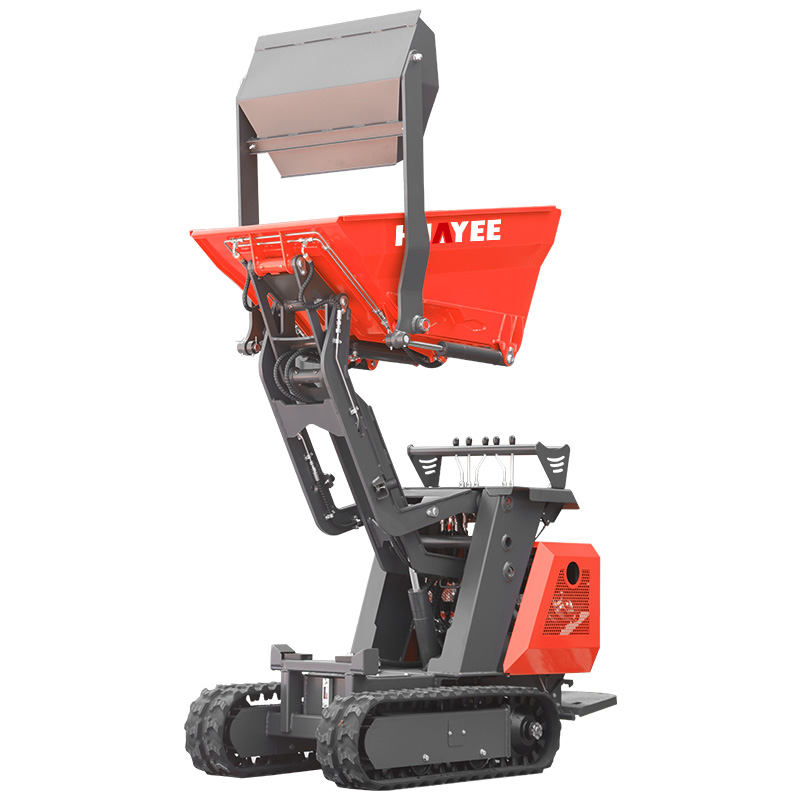

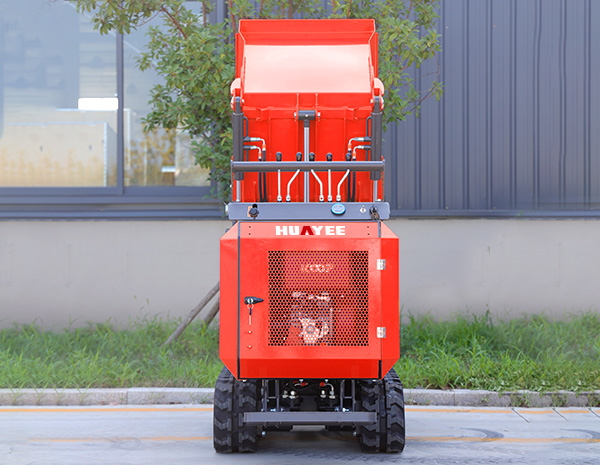

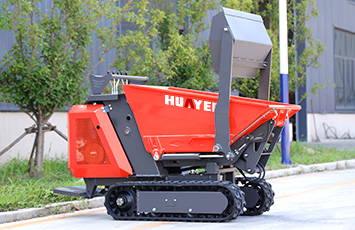

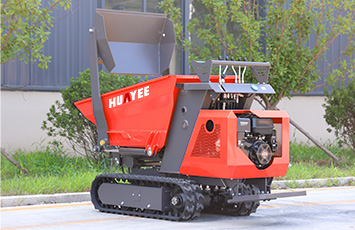

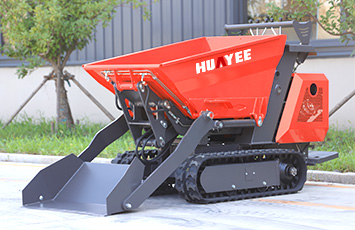

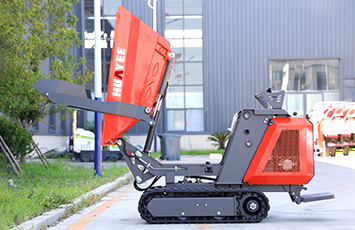

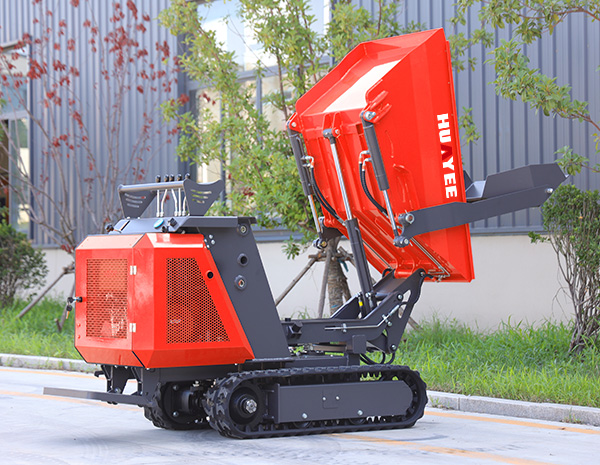

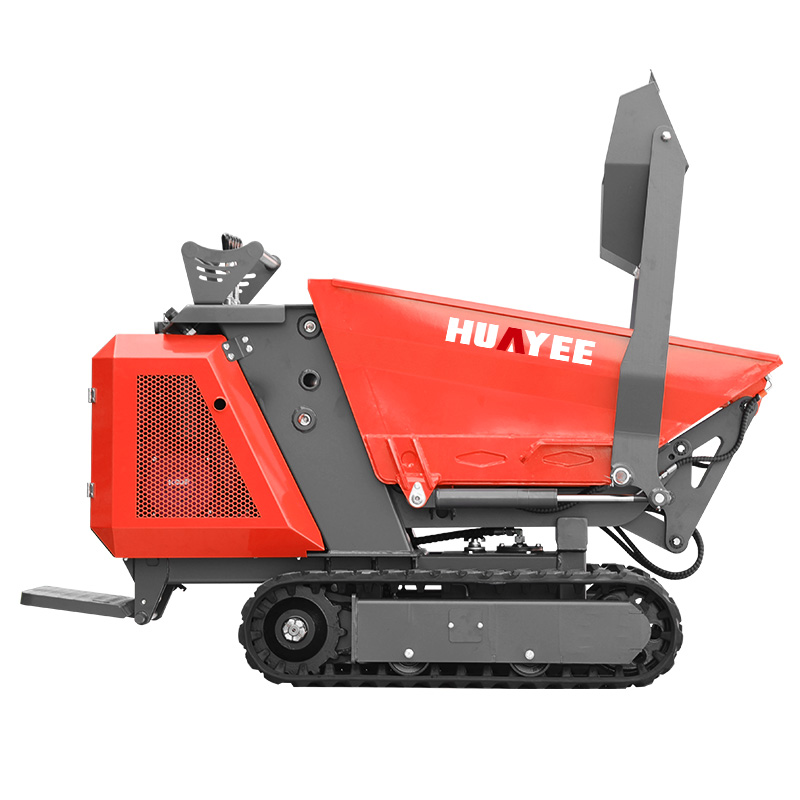

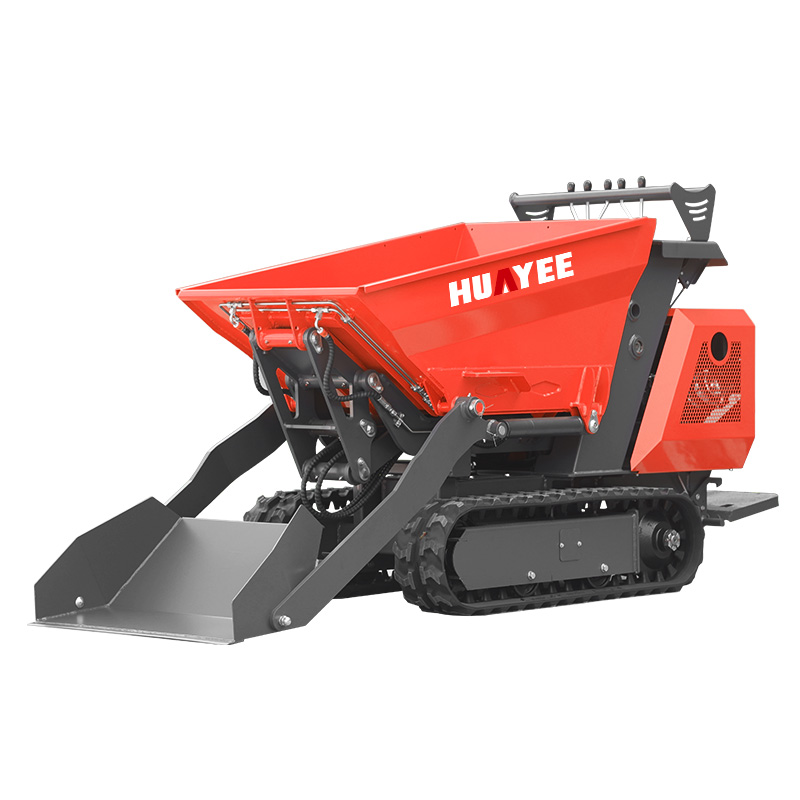

HY-A08 Mini Dumper -
HY-A08 Mini Dumper
Mini crawler dumper truck is a dump truck made of rubber crawler chassis, suitable for short-distance transportation of complex terrain such as building material stores, farms, construction sites, etc.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

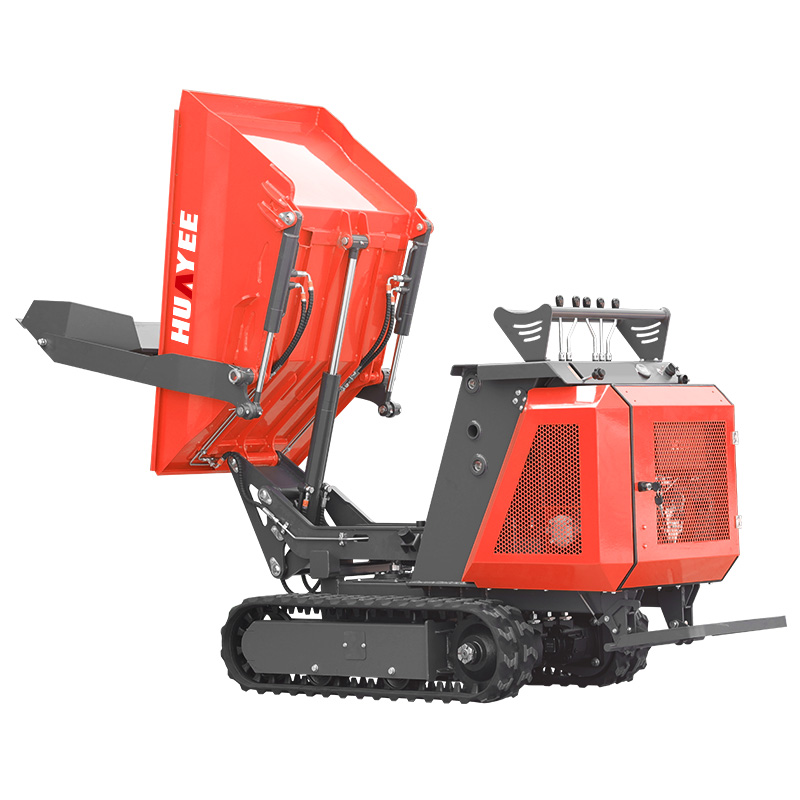

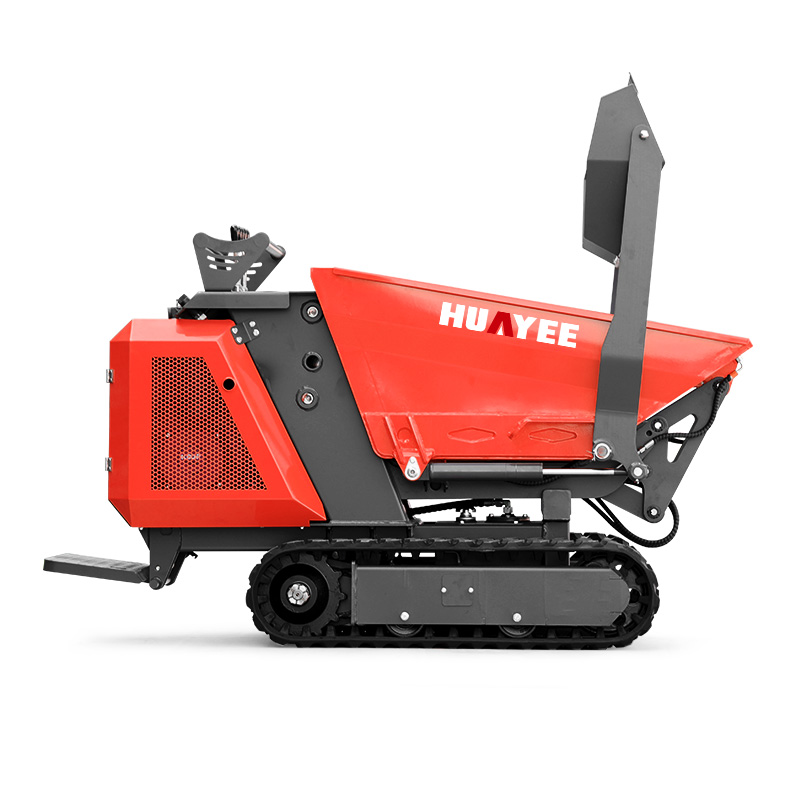

HY-A08 Mini Dumper
The hydrostatic drive system allows for quick and convenient operation ,at the same time, it is gentle on the subbase due to its wide tracks and the perfectly balanced center of gravity with low ground pressure.
- Max Loading Capacity 800KG
- Dimensions 1982x870x1680mm
- Engine Power 10HP
-
-
-
Hydrostatic Drive
·Simply start and off you go: Because of the hydrostatic drive system, no frequent gear changing is needed and the operator can focus on the task.
·The hydraulic drive system and the working hydraulics can be operated independently of each other.
-
-
-

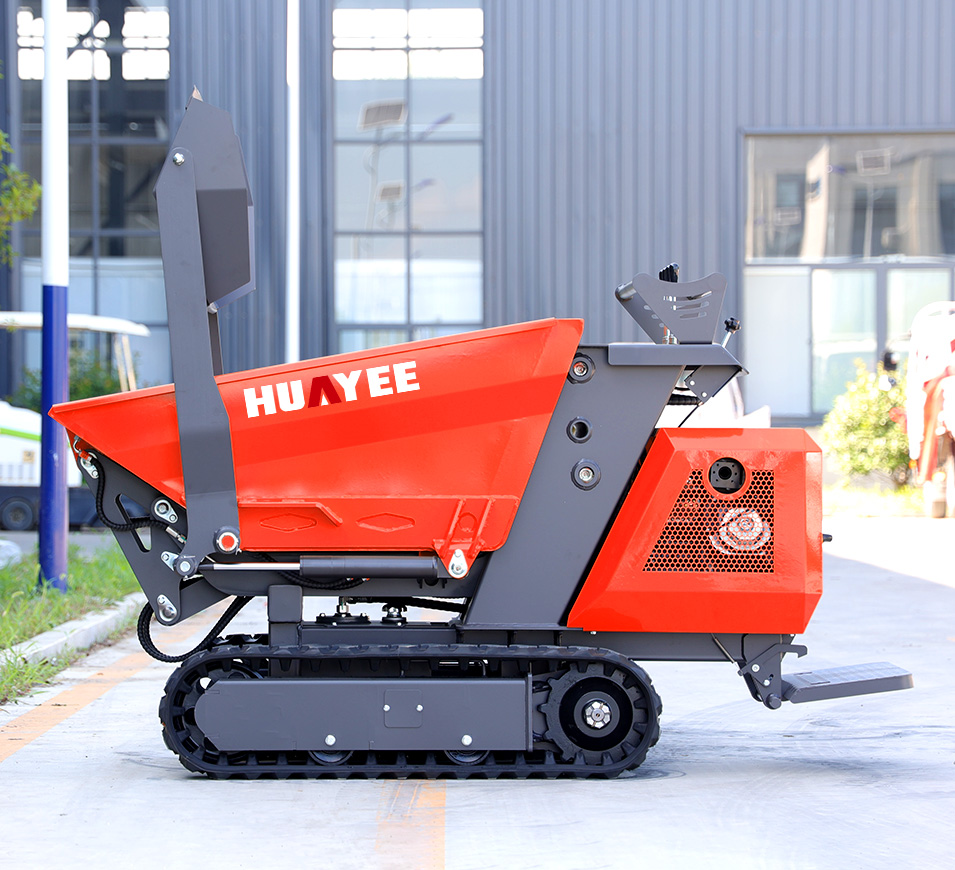

Small Dimensions
·The compact dimensions of the machine make it ideal for maneuvering and working in confined spaces.
·This gives better possibilities to maneuver the machine in narrow applications.
·The machine can be operated without restrictions even in narrow places. -
-
-

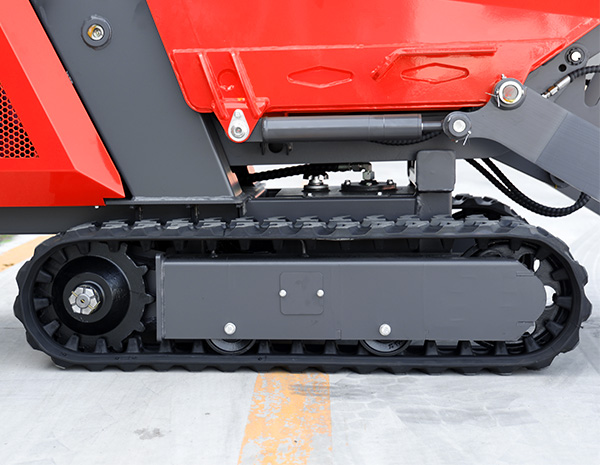

Track Width
·Due to the wide tracks, the machine produces very low ground pressure, which reduces ground disturbance during repair work.
·This also leads to a more comfortable and smoother driving experience and protects the machine and operator.
Model |
HY-A08 mini dumper |
Machine weight |
720KG |
Maximum load |
800KG |
Walking speed |
2.1/4.2(km/h) |
Minimum turning radius |
1.35m |
Track center distance |
620mm |
Minimum ground clearance |
85mm |
Gradeability |
20° |
Hydraulic oil tank capacity |
7L |
Hydraulic oil product number |
46# anti-wear hydraulic oil |
Container volume |
0.26(1235*730*590)m³ |
Length * width * height |
1982*870*1680(mm) |
Engine |
|
Brand |
Briggs & Stratton/RATO/Koop |
Displacement |
306cc |
Total power (HP)*@3600rpm |
10(7.4KW/3600) |
Fuel capacity |
5.3L |
Oil capacity |
1.1L |
Net weight |
25kg |
Travel motor |
|
Brand |
Songheng Hydraulic |
Displacement |
50%cc |
Maximum working pressure |
16MPa |
Maximum torque |
730Nm |
