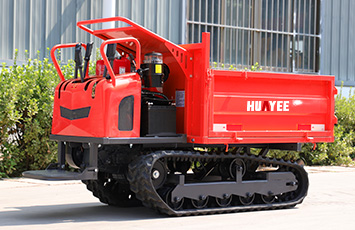

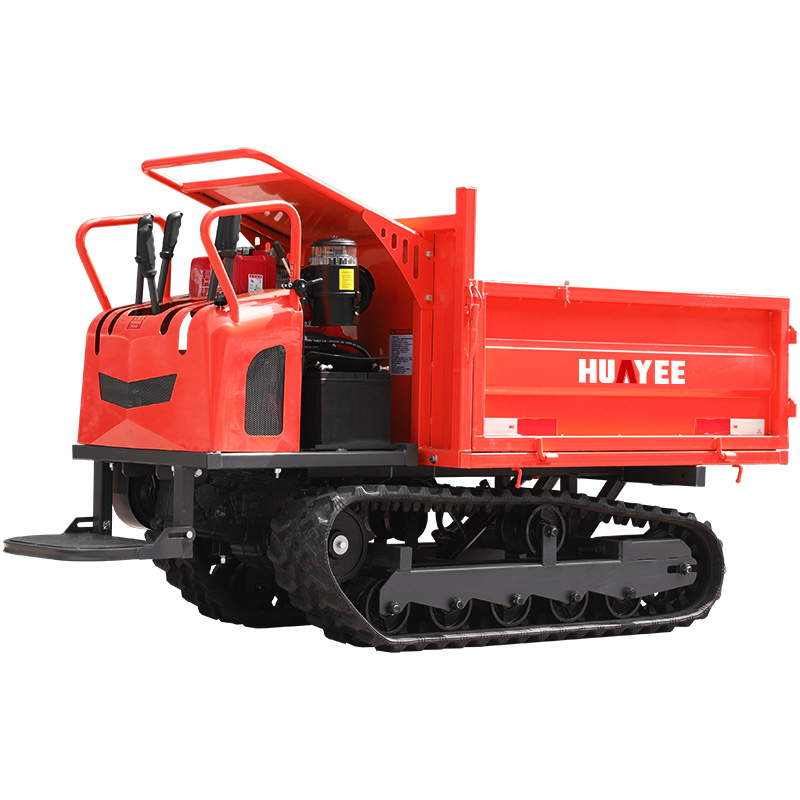

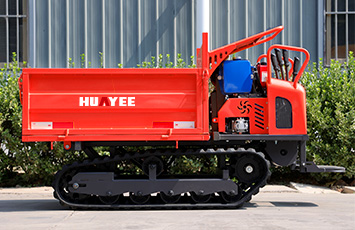

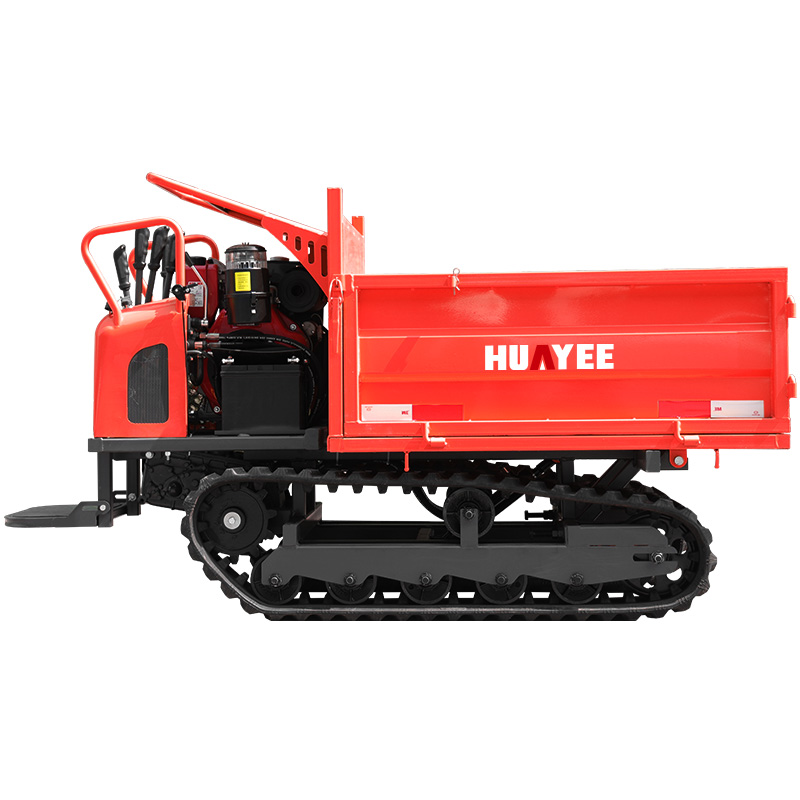

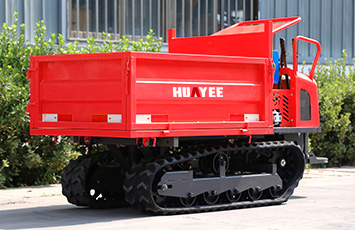

HY-D12 Mini Dumper -
HY-D12 Mini Dumper
Mini crawler dumper truck is a dump truck made of rubber crawler chassis, suitable for short-distance transportation of complex terrain such as building material stores, farms, construction sites, etc.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

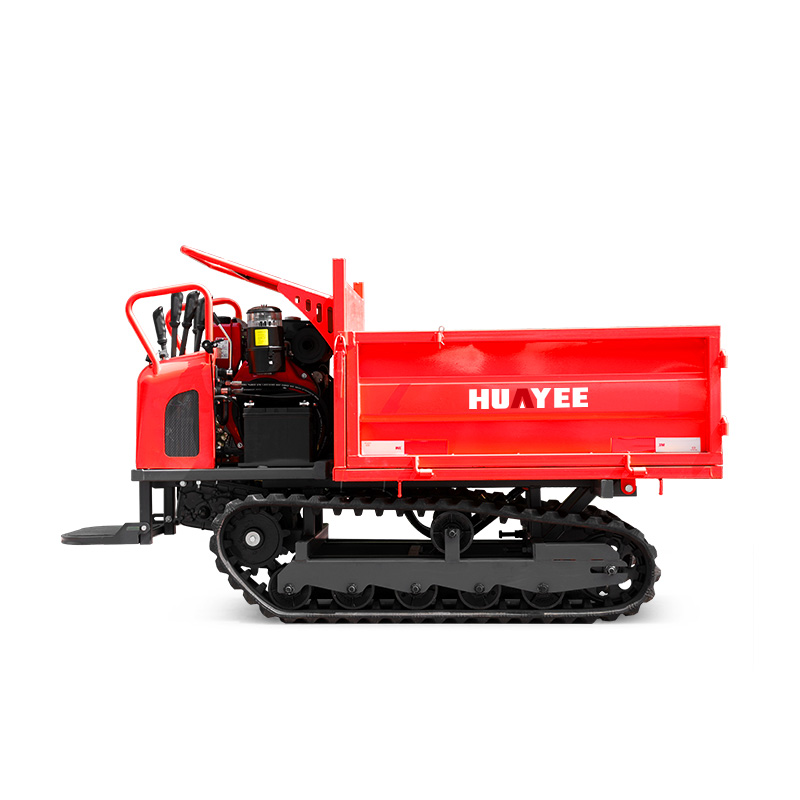

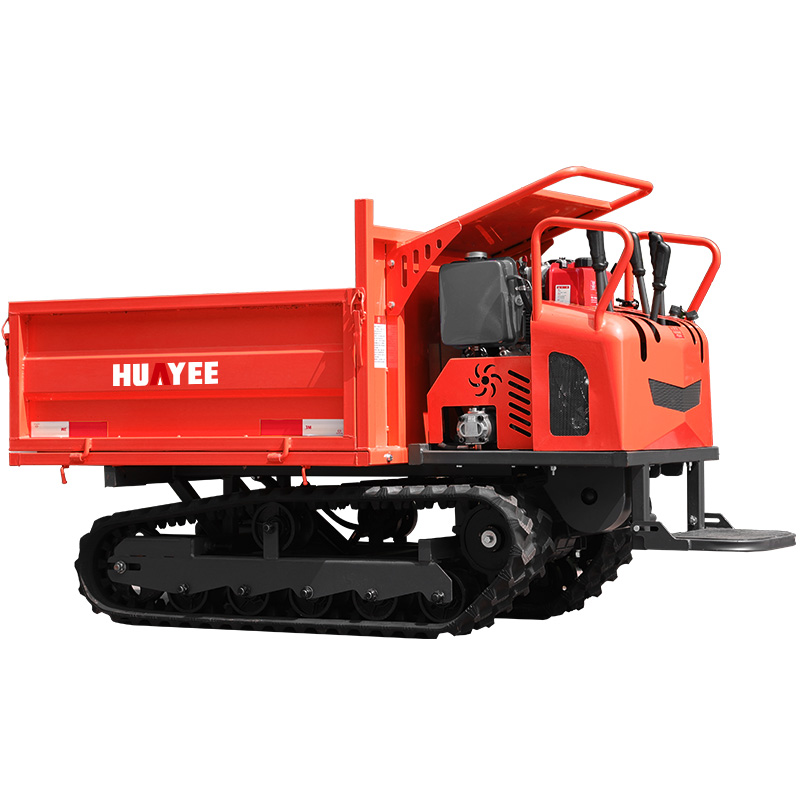

HY-D12 Mini Dumper
- Max Loading Capacity 1200KG
- Engine Power 11HP
-
-
-
Hydrostatic Drive
·Simply start and off you go: Because of the hydrostatic drive system, no frequent gear changing is needed and the operator can focus on the task.
·The hydraulic drive system and the working hydraulics can be operated independently of each other.
-
-
-
Small Dimensions
·The compact dimensions of the machine make it ideal for maneuvering and working in confined spaces.
·This gives better possibilities to maneuver the machine in narrow applications.
·The machine can be operated without restrictions even in narrow places. -
-
-

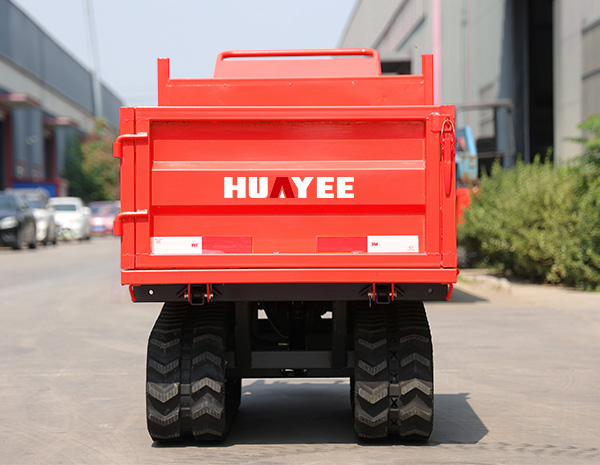

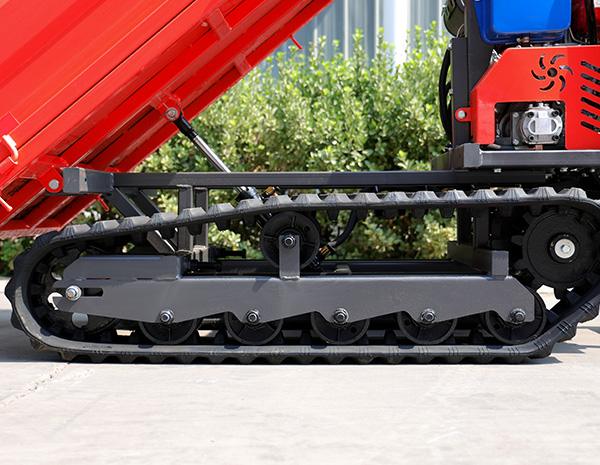

Track Width
·Due to the wide tracks, the machine produces very low ground pressure, which reduces ground disturbance during repair work.
·This also leads to a more comfortable and smoother driving experience and protects the machine and operator.
Model |
HY-D12 Mini Dumper |
Max loading capacity |
1200KG |
Weight |
597KG |
Variable box model |
18-615 |
Vehicle size (L*W*H) |
2580*1100*1310mm |
Cargo box (L*W*H) |
1400*1000*460mm |
Track (model) |
230*72*46 |
Ground contact length |
1100mm |
Minimum turning radius |
1000mm |
Gear position |
3 front and 1 reverse |
Maximum travel speed |
15km/h |
Minimum travel speed |
2km/h |
Chassis width |
850mm |
Starting method |
Electric start |
Cooling method |
Air cooling |
Uphill angle |
38° |
Track type |
Ordinary, engineering rubber track |

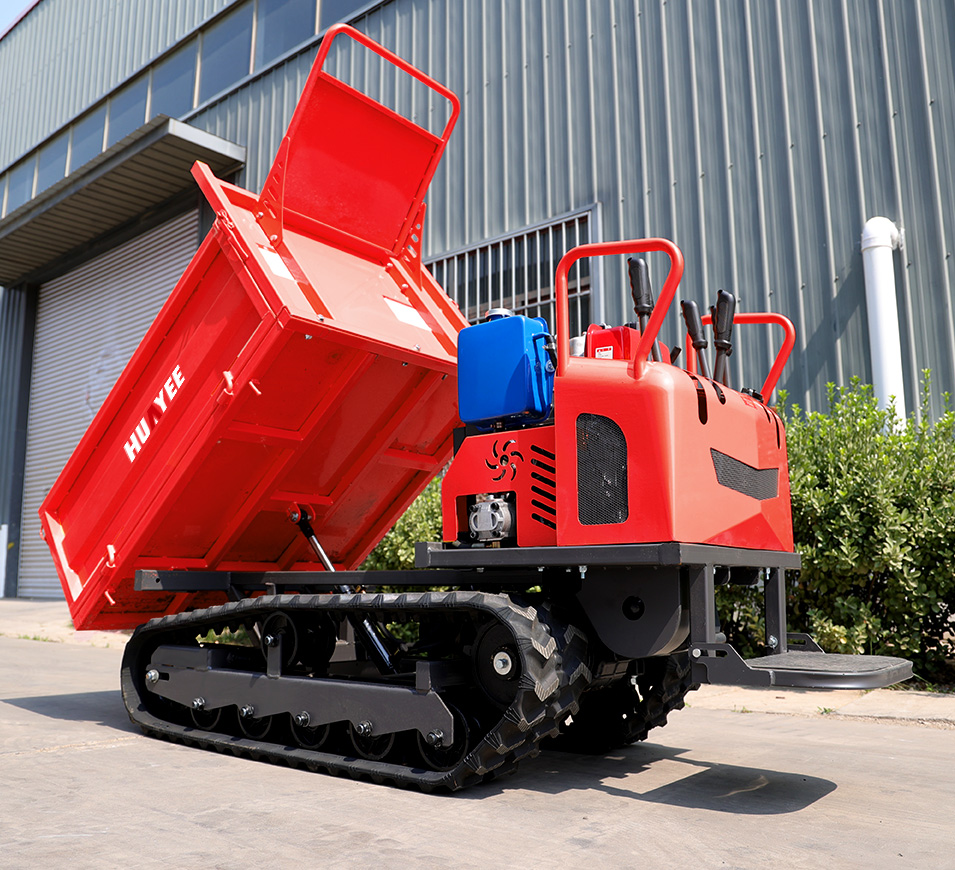

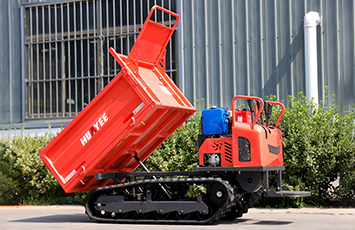

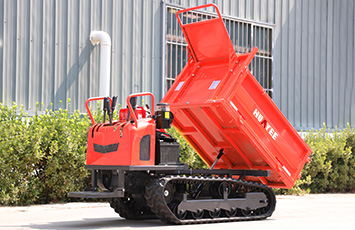

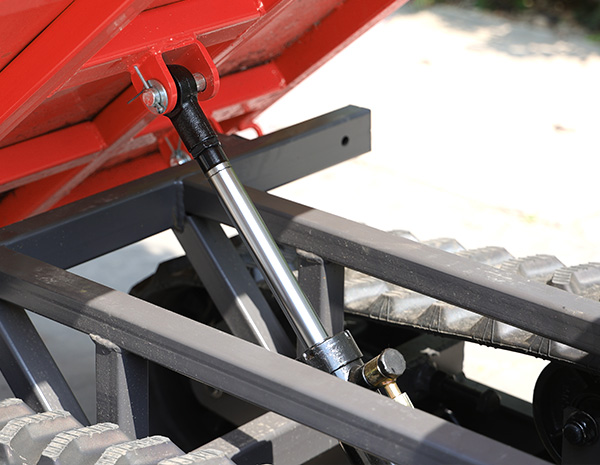

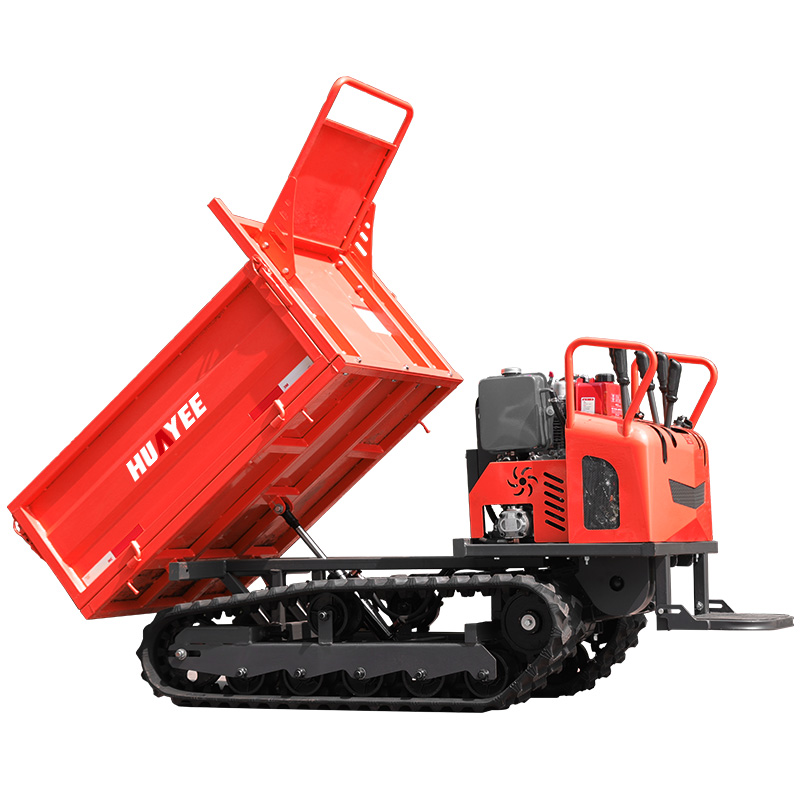

Dump function |
Dumping bucket |
Engine brand |
Wuxi Kaiyuelin, Changchai |
Engine model |
Air cooling 192 |
Number of engine cylinders |
Single cylinder |
Engine power |
11HP |
