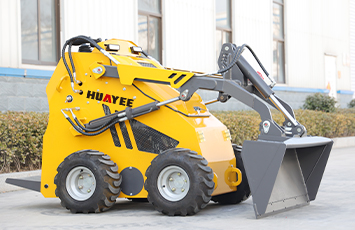

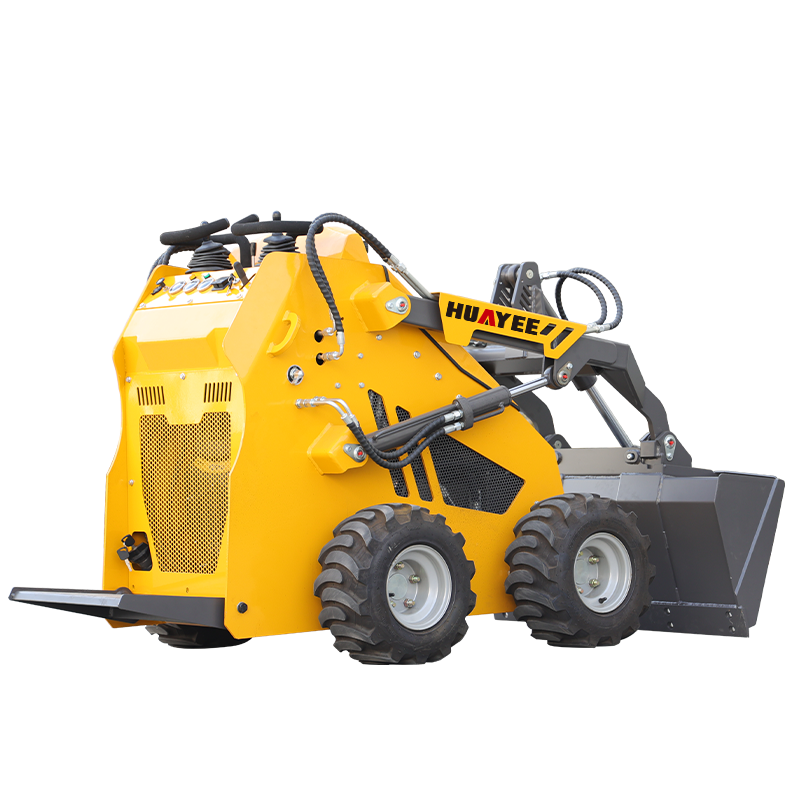

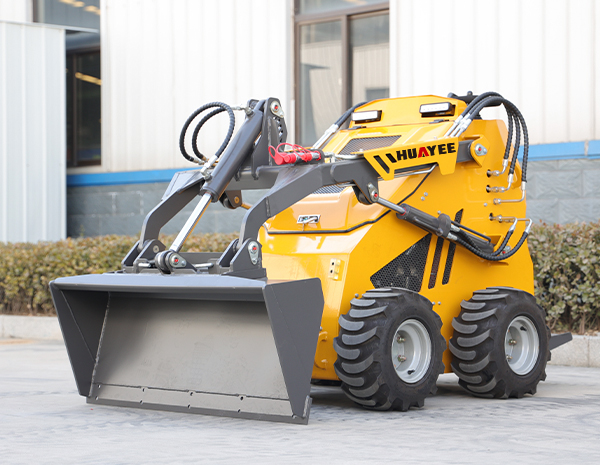

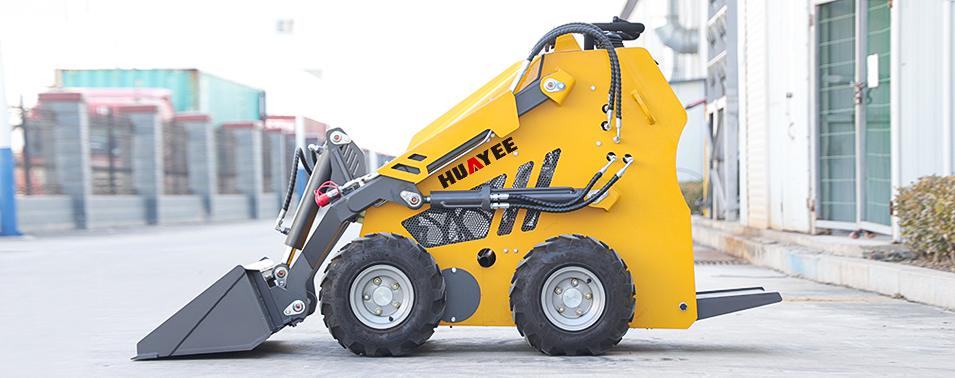

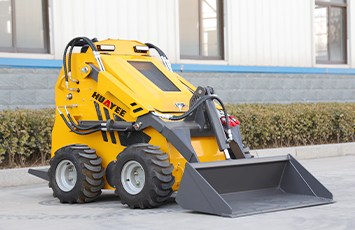

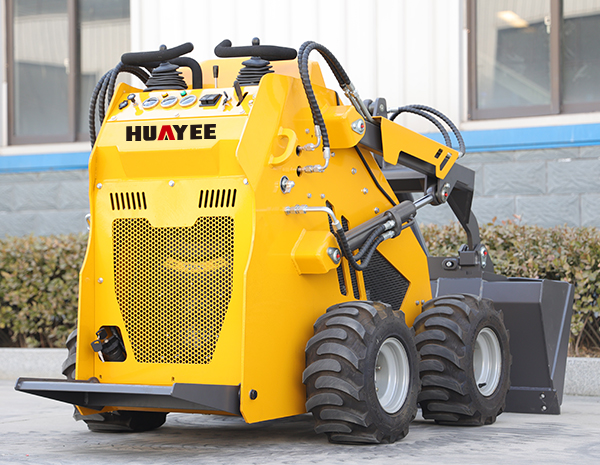

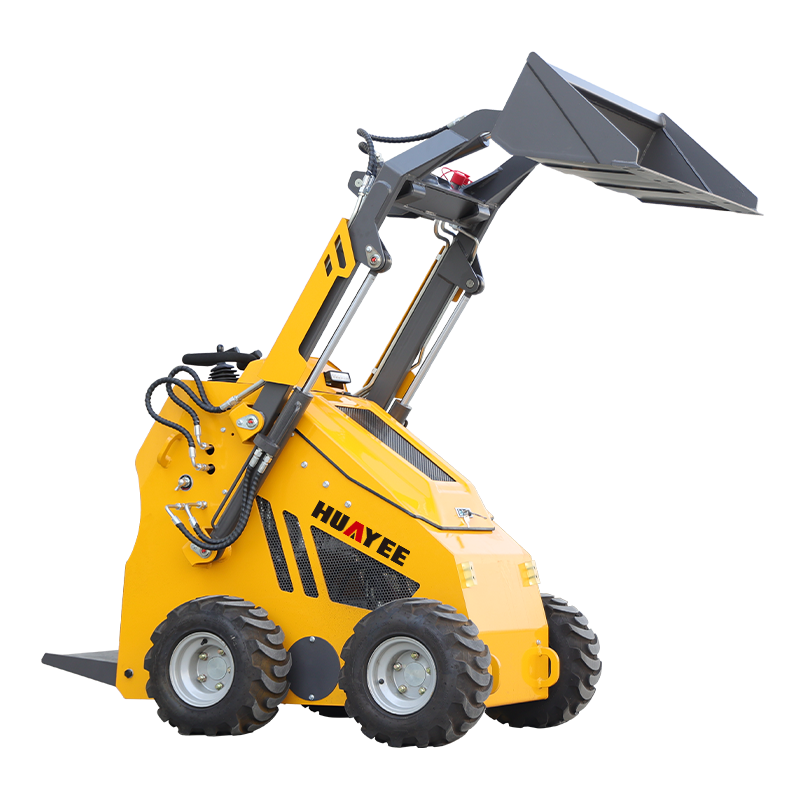

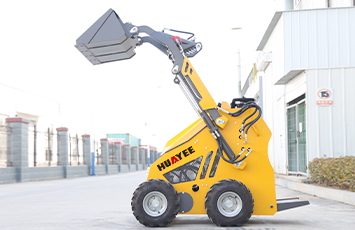

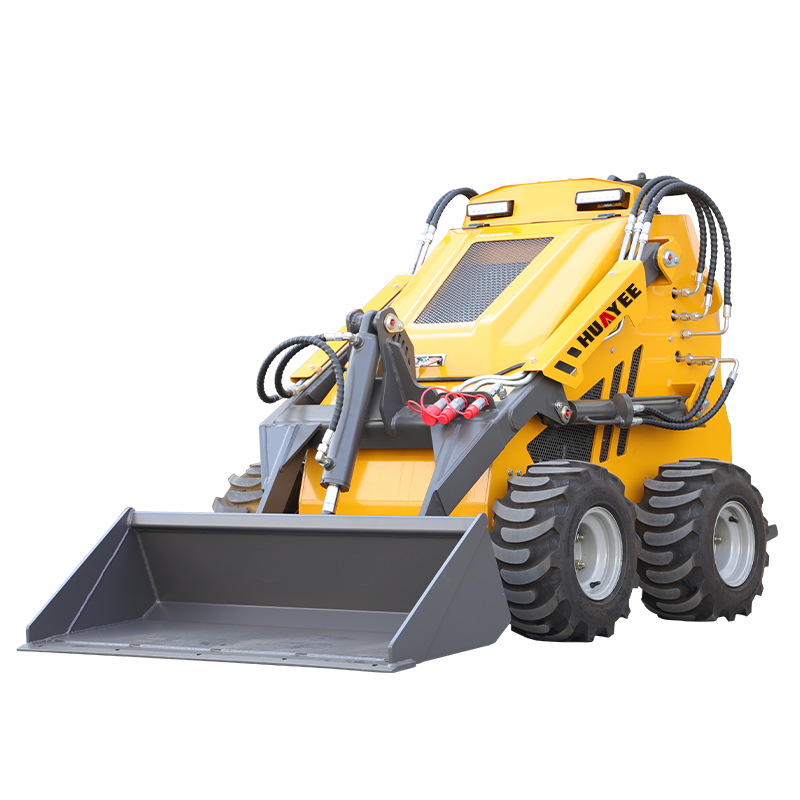

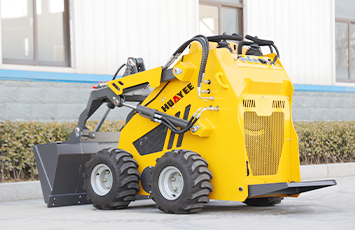

HY480W Mini Skid Steer Loader -
HY480W Mini Skid Steer Loader
The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-
HY480W Mini Skid Steer Loader
- Engine Power 23hp
- Dimensions 2285*1155*1270mm
- Rated Loading Weight 200kg
-
-
-
CUSTOMIZATION SUPPORTED
Logo/color/engine/etc
We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization.
-
-
-
EPA/EURO V ENGINE
Standard with Koop diesel engine,Air Cooling. it can be changed as Runtong Gasoline engine or Briggs & Stratton Gasoline engine. Fuel saving and powerful performance.
-
-
-
EASY OPERATING，SIMPLE MAINTENANCE
Compact dimensions , Wide range of uses。 Standard wooden box or iron frame packaging.
Specifications |
|
Rated Loading Weight |
200kg |
Bucket Capacity |
0.15m³ |
Maximum Lifting Weight |
375kg |
Work Speed |
0-6 Km/h |
Rated Pressure |
17 Mpa |
Lifting Time |
4.3s |
Maximum Unloading Height |
2100mm |
Bucket Lowering Time |
3.3s |
Dimensions (mm) |
2285*1155*1270mm |
Gradeability |
30 |
Machine Operating Weight |
890kg |
Engine Model |
Briggs & Stratton 3864 |
Engine Info |
Gasoline,v Type Two-cylinders |
Rated Power |
17.1kw(23hp)/3600rpm |
Start Method |
Electric |
Hydraulic Box |
25l |
Motor Oil Box |
1.7l |
Fuel Box |
25l |
