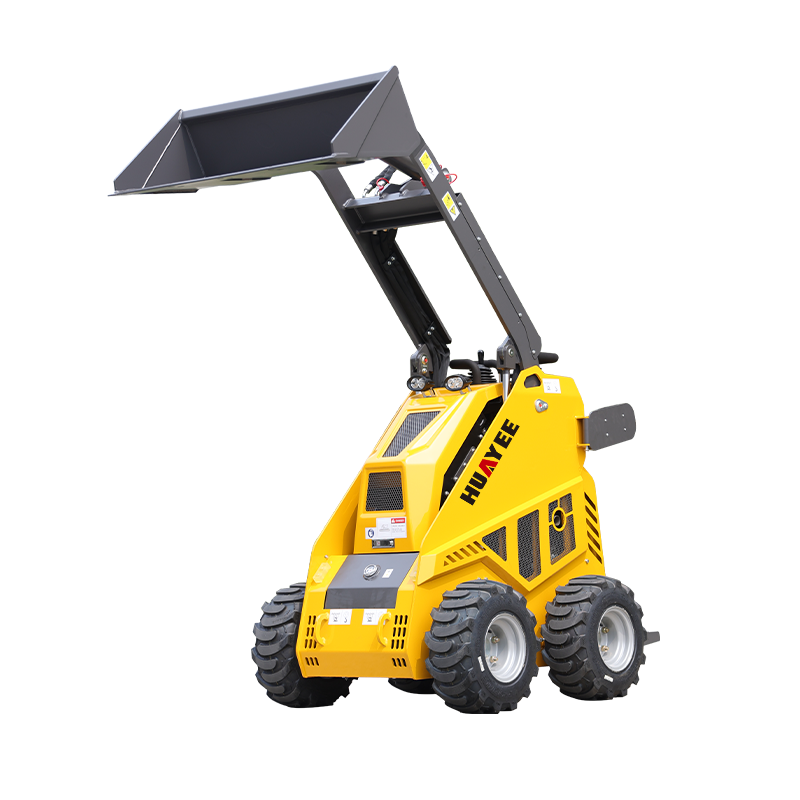

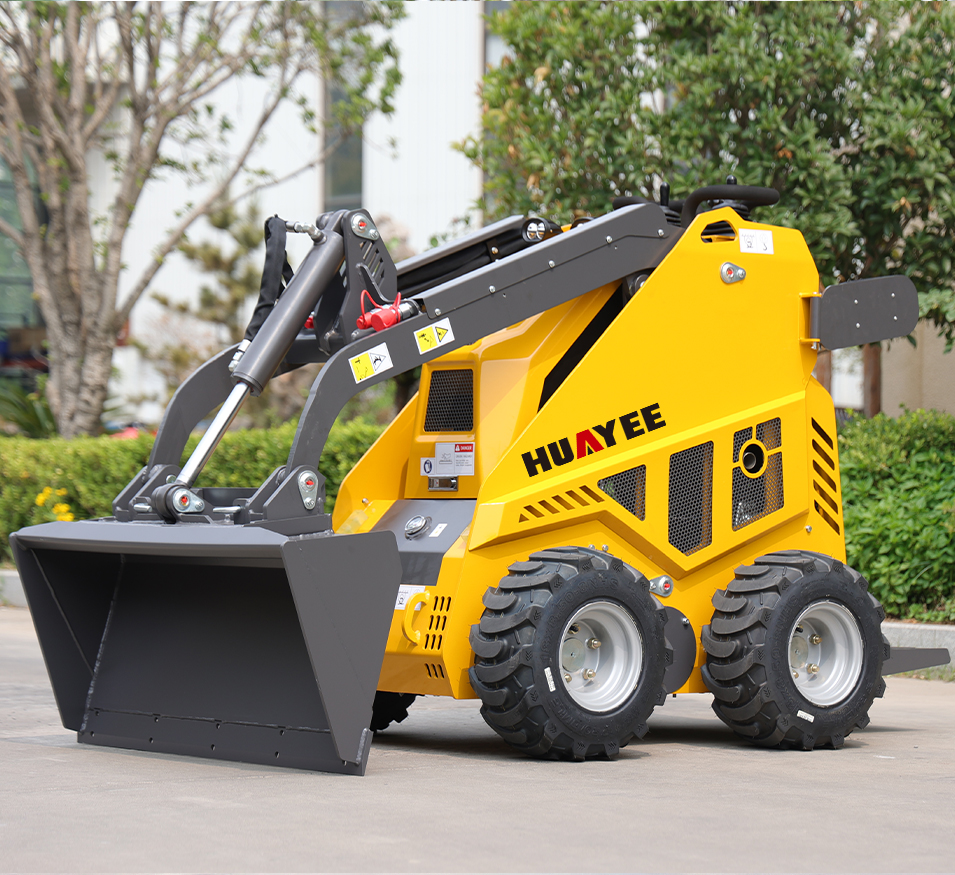

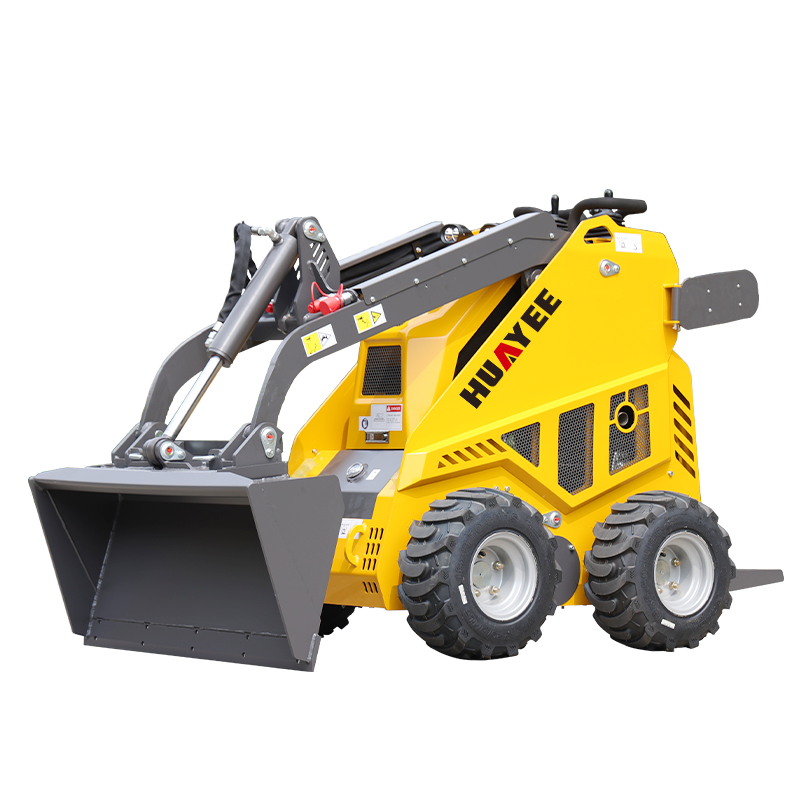

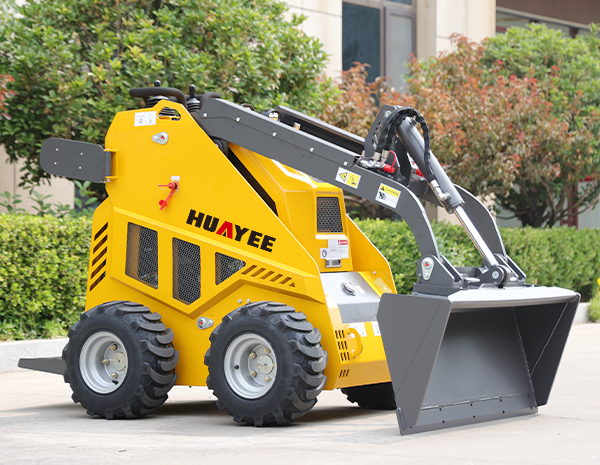

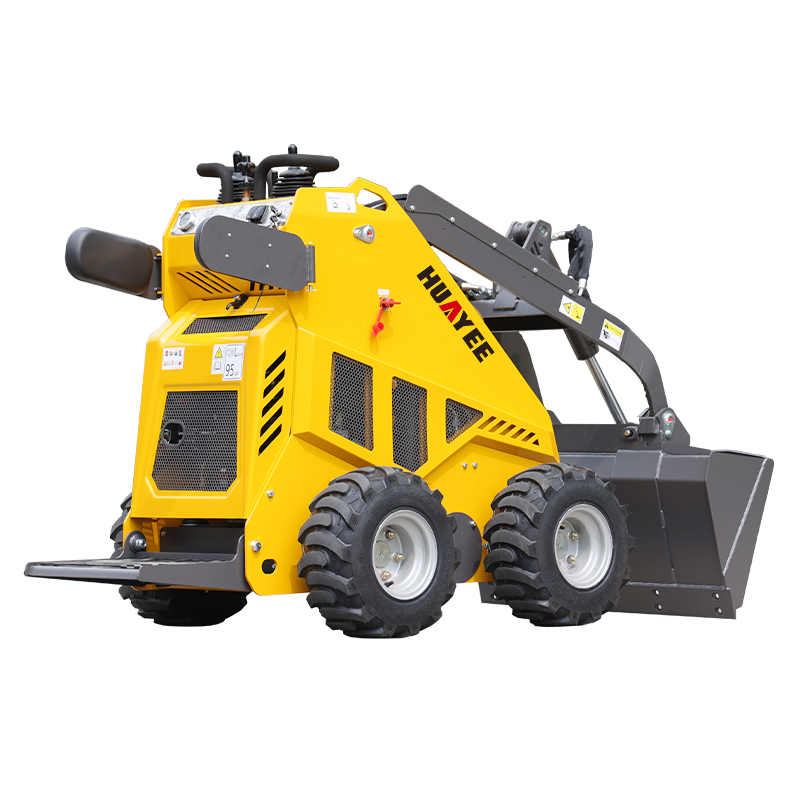

HY360W Mini Skid Steer Loader -
HY360W Mini Skid Steer Loader
The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

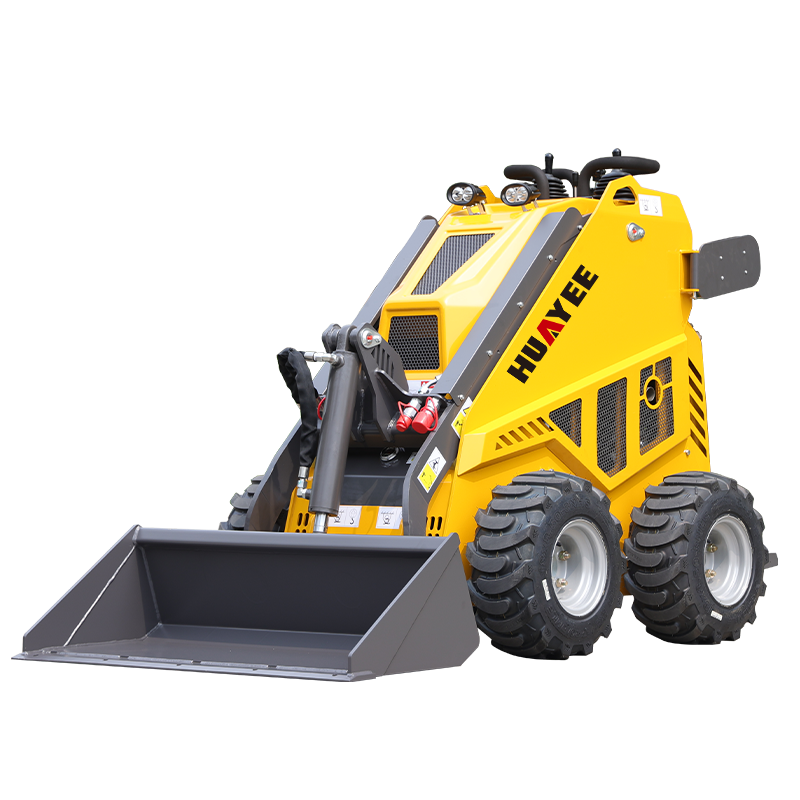

HY360W Mini Skid Steer Loader
The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
It is mainly suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, etc.- Engine Power 13.5hp
- Dimensions 2110*1050*1345mm
- Rated Loading Weight 200kg
-
-
-
CUSTOMIZATION SUPPORTED
Logo/color/engine/etc
We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization .
-
-
-
EPA/EURO V ENGINE
Standard with Briggs & Stratton XR2100 13.5hp/3600rpm or Rato R420 15hp/3600rpm,Gasoline engine.
-
-
-
EASY OPERATING，SIMPLE MAINTENANCE
Compact dimensions , Wide range of uses.
It is an ideal choice for working in places where the site is small, the ground is undulating, and the job content changes frequently.It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery.
Specifications |
|
| Rated Loading Weight | 200kg |
| Bucket Capacity | 0.13m³ |
| Maximum Lifting Weight | 330kg |
| Work Speed | 0-5 Km/h |
| Rated Pressure | 17 Mpa |
| Lifting Time | 4.2s |
| Maximum Unloading Height | 2180mm |
| Bucket Lowering Time | 3.1s |
| Dimensions (mm) | 2110*1050*1345mm |
| Gradeability | 30 |
| Machine Operating Weight | 690kg |
| Engine Model | Briggs & Stratton 25T2 |
| Engine Info | Gasoline,v Type single-cylinder |
| Rated Power | 13.5hp/3600rpm |
| Start Method | Electric |
| Hydraulic Box | 20l |
| Motor Oil Box | 1.1l |
| Fuel Box | 6.6l |
